Area step line
Use to show magnitude or change over time.
Use the Area step line chart when you want to show magnitude or change over time. The Area step line chart is similar to the area line, but with vertical and horizontal lines between data points instead of straight lines.
Input
The Area step line chart requires text and numeric columns.
Configuration
Use the following configuration options to configure the Area step line chart.
Note
The Configuring the Area step line chart gives configuration options through the Pipe module. If you have charts already created, you can access your charts through your Dashboards.
Go to the Pipes module from the side navigation bar.
From the Pipes tab, click an existing pipe to open, or create a new pipe. To create a new pipe, read the Creating a pipe documentation.
In the Pipe builder, add at least one data source to your pipe. For more information on adding a data source, see the Data tool.
Add tools to build out your pipe. For more information about adding tools to your pipe, see the Using the Pipe builder canvas documentation.
Create a chart from your pipe by clicking Charts on the canvas toolbar.
Click Create Chart.
The chart page opens.
In the configuration pane, enter the following information:
Table 101. Area step line chartField
Description
Setup tab
Tool
Select the tool in your pipe that you want to create a chart for.
Chart type
Type Area step line and click on the Area line graphic to select it.
X axis
Select the column to use as the X axis.
Series
Select the column to use for the chart.
Advanced section
Show
Select either Preview or Last built.
Preview displays the first 100 rows of your data from your last build.
Last build displays the first 1000 rows of your entire dataset from your last build.
Sort
Select to sort your chart data by None, Ascending or Descending.
Aggregate?
Click the Aggregate? checkbox to aggregate your chart data.
All
Calculate all columns that you select with one of the following operations:
Sum
Count
Average
Max
Min
Median
OR
AND
STDEV
Customize section
Chart and axis titles
Select the following to add titles to your charts:
Include chart title
Include chart subtitle
Include horizontal axis title
Horizontal axis label angle
Select the degree from the drop-down list of the angle for the horizontal axis label.
Include vertical axis title checkbox
Select to add the vertical axis title.
Vertical axis label angle
Select the degree from the drop-down list of the angle for the vertical axis label.
Left margin
Enter the padding for the left margin or click the arrows to increase or decrease the number.
Right margin
Enter the padding for the right margin or click the arrows to increase or decrease the number.
Top margin
Enter the padding for the top margin or click the arrows to increase or decrease the number.
Bottom margin
Enter the padding for the bottom margin or click the arrow to increase or decrease the number.
Colour
Click on the column colour to change it.
Legend
Select the Include legend checkbox to add a legend to your chart.
Usage example
For example, you want to see the difference between each of your sellers sales amounts for every quarter in 2024. Using the Area step line chart, the data displays the amounts for each seller.

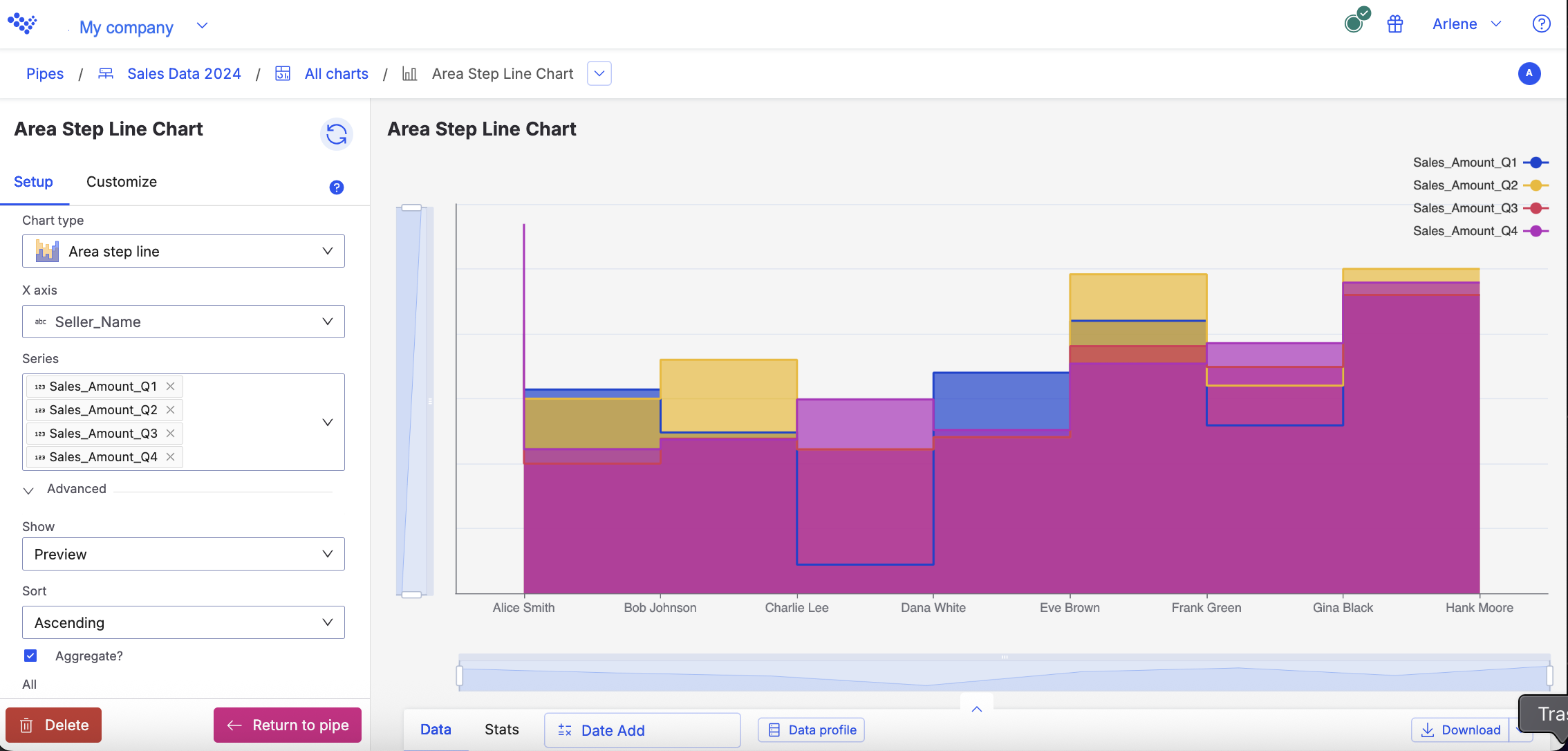

The Area line chart displays the sellers sale amounts for each quarter.

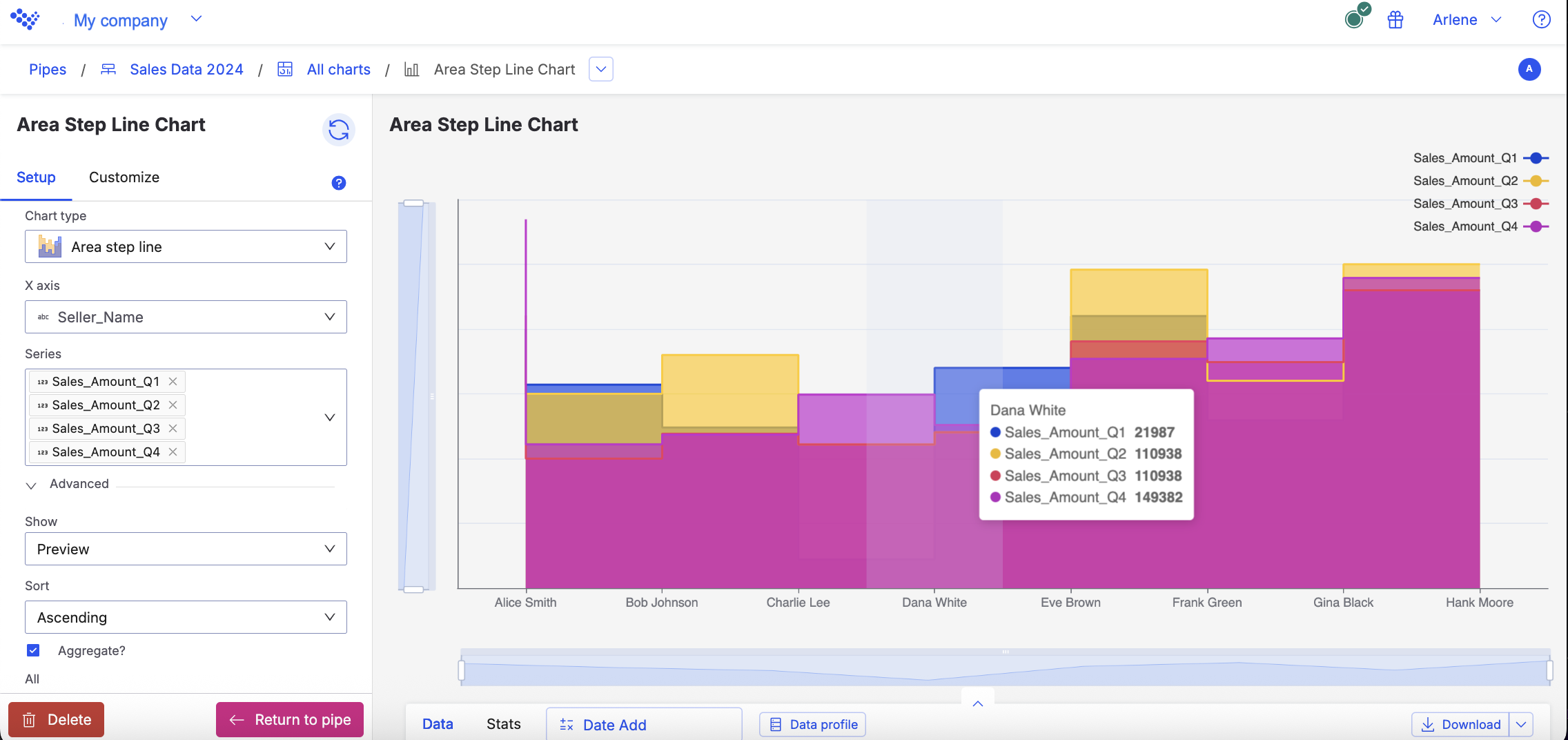

When you hover over each point in the chart, you can see the data for an individual seller:
